ALASKA MAXI - fogal refrigeration

Unlike the Alaska model, Alaska VBN is equipped with a new condensing unit with reduced vertical size based on a horizontal scroll compressor. In addition to a lower noise level and energy consumption (-15%), the use of this peculiar type of compressor allows the placement of an additional shelf, increasing the internal capacity (+20%) of the refrigerated case.

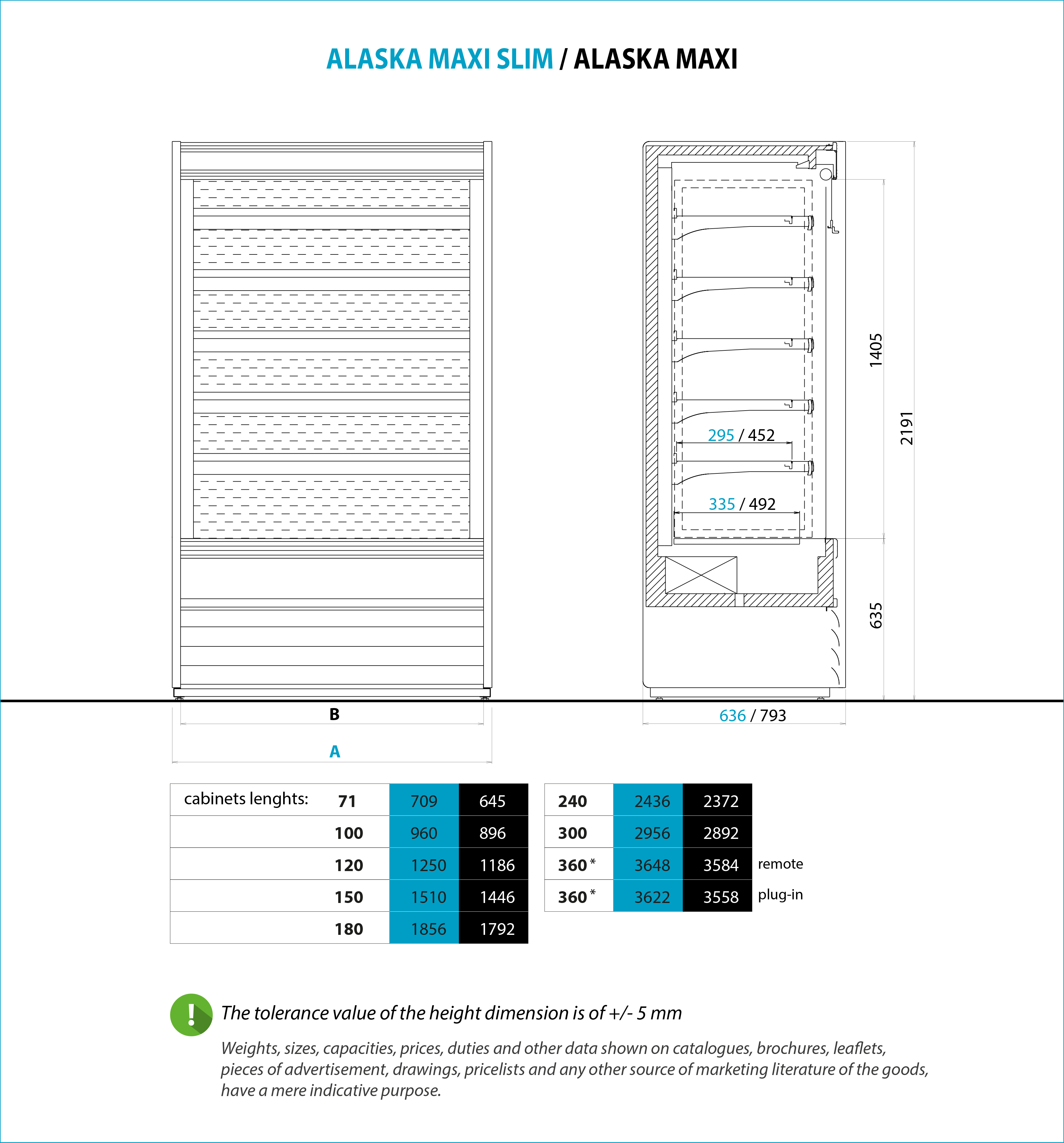

DIMENSIONS
nominal lengths / real lenghts (mm) for special lengths, please get in touch with our sales dpt. 71 ( 710 ) 100 ( 960 ) 120 ( 1250 ) 150 ( 1510 ) 180 ( 1856 ) 240 ( 2436 ) 300 ( 2956 ) 360 ( 3648 )
plug-in √	remote √
depth mm
standard: 790 slim: 635
plug-in √	remote √
height mm
2190
plug-in √	remote √
front height mm
635
plug-in √	remote √

STRUCTURE
steel and wood water-repellent chipboard framework
plug-in √	remote √
solid ends

plug-in √	remote √
panoramic ends

plug-in √	remote √
on demand	on demand
self and slow closing glass sliding doors Please note: on our 71 cabinets, the sliding doors are not self-closing (low-emission thermal glass closing system designed by Fogal Refrigeration)

plug-in √	remote √
on demand	on demand
hinged glass doors (low-emission thermal glass closing system designed by Fogal Refrigeration)

plug-in √	remote √
on demand	on demand
Lower grille available in all RAL colors

plug-in √	remote √
Night blind – motorised version available

plug-in √	remote √
on demand	on demand
Manual shutter white/ grey/ stainless steel effect

plug-in √	remote √
on demand	on demand
Motorised shutter white/grey/stainless steel effect

plug-in √	remote √
on demand	on demand
Rear loading doors (available with full doors or glass doors and white or aluminium frame)

plug-in √	remote √
on demand	on demand
adjustablefeet

plug-in √	remote √
castors for an easier movement of the cabinet

plug-in √	remote √
on demand	on demand
Base shelf + 5 rows of adjustable complete shelves with brackets and ticket strips
plug-in √	remote √

TECNOLOGY
remote
on demand
plug – in
monophase ermetic compressor 230V-50Hz
electronic fans
plug-in √	remote √
fan assisted refrigeration system
plug-in √	remote √
fan assisted condensing system
plug-in √	remote
electronically controlled refrigeration system
plug-in √	remote √
thermal expansion valve
plug-in √	remote √
stainless steel tray for the automatic collection and evaporation of the waste water by means of hot gas
plug-in √	remote
Plug-in version, 120mm only
stainless steel tray for the automatic evaporation of the waste water by way of a self adjusting PTC sensor
plug-in √	remote √
	on demand
low noise level (≤ 40 dBA) _ cabinets with front doors
plug-in √	remote √
multiplexible
plug-in √	remote √
top LED light
plug-in √	remote √
climatic class 3 (ambient temperature up to 25°C, max relative humidity 60%)
plug-in √	remote √
product temperature class
3M1 _ -1 +5°C (range reg. 0/+2°C)
plug-in √	remote √
3M2 _ -1 /+7°C (range reg. +3/+5°C)
plug-in √	remote √
Refrigerant gas R290
plug-in √	remote
Refrigerant gases: CO2 R513a R448a R407a R407c R134a R452a R449a R407f glicole
plug-in	remote √
	on demand

AVAILABLE CLADDINGS
with aluminium trims and ABS inner profiles black and dark grey color on demand

plug-in √	remote √
internal and external visible parts epoxy powder coated – white color
plug-in √	remote √
polished or satined stainless steel internal and external parts Note: on stainless steel cabinets, some components are made of galvanized or powder coated plate
plug-in √	remote √
on demand	on demand
internal and external RAL color coating

plug-in √	remote √
on demand	on demand
wide range of laminated external cladding

plug-in √	remote √
on demand	on demand
wide range of OPTIONS available
plug-in √	remote √
on demand	on demand
